10 Graphing

The following subsections show examples of how to create certain types of graphs.

10.1 Histograms and Density Plots

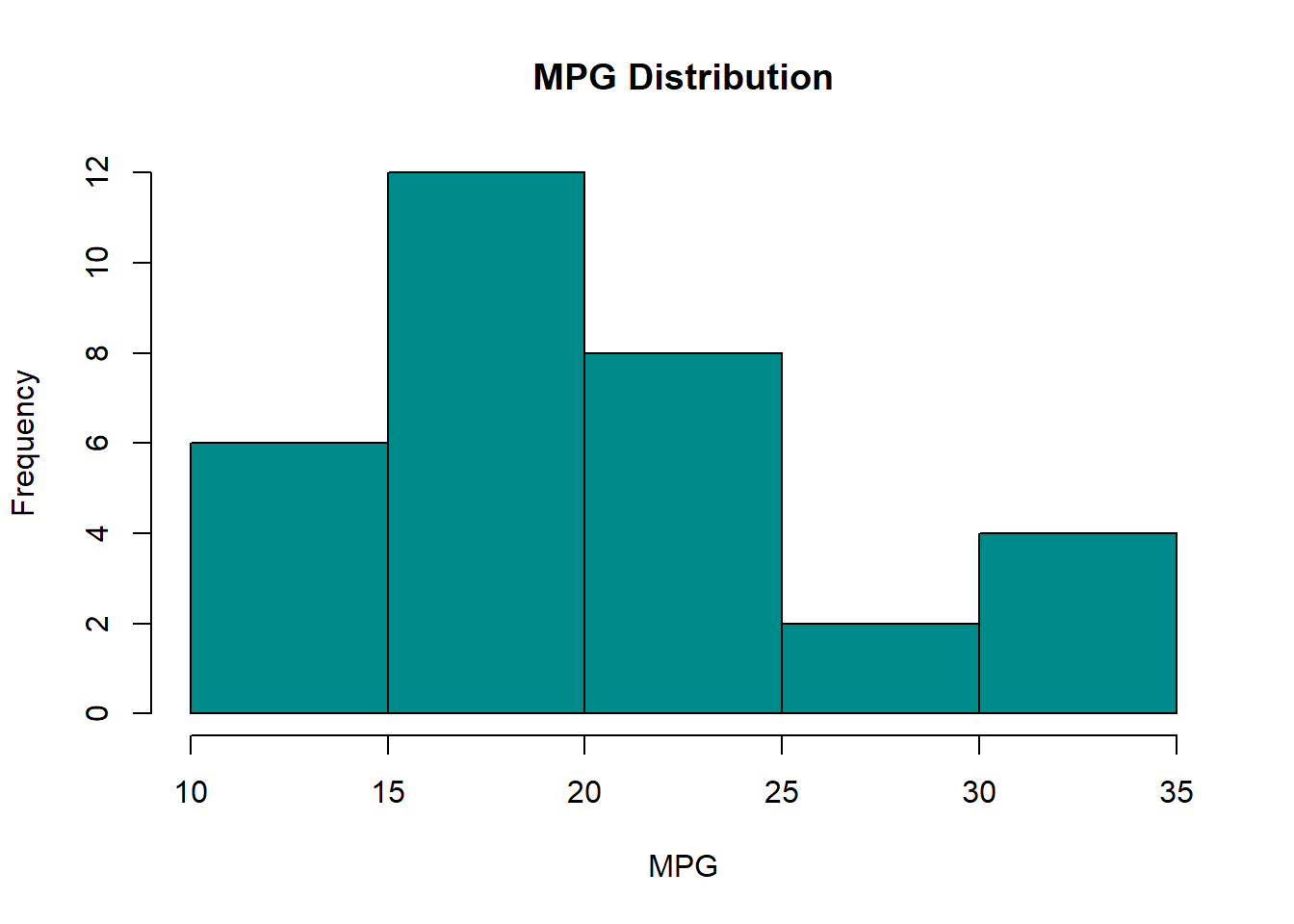

All we need to make a histogram is to pass a vector into the hist() function.

hist(mtcars$mpg,
     col = 'cyan4',
     xlab = 'MPG',
     ylab = 'Frequency',
     main = 'MPG Distribution')

To create a density plot, we apply plot() over a vector of class density via the density() function.

# Remember our random numbers.
set.seed(1)

# Create our random numbers.
x <- density(rnorm(100))

# Plot our random numbers.
plot(x,
     main = '100 Random Numbers',
     col  = 'salmon')

To overlay a density plot on a histogram, we use hist(..., freq = FALSE) followed by lines() on our density vector.

hist(mtcars$mpg,
     col = 'salmon',
     xlab = 'MPG',
     ylab = 'Density',
     main = 'MPG Distribution',
     freq = FALSE) # Use density on y-axis.

lines(density(mtcars$mpg),
      lwd = 1) # Line width

10.2 Scatter Plots

To make a scatter plot, we make use of the plot(formula) function, where formula input is of the syntax y ~ x (y relates to the y-axis and relates to the x-axis).

10.2.1 Simple Scatter Plot

# Draw the scatter plot
with(mtcars,
     plot(mpg ~ wt,
          ylab = 'MPG',
          xlab = 'Weight',
          main = 'MPG vs. Weight',
          col = 'cyan4',
          pch = 16)) # pch determines point type.

# Draw a trend line over the scatter plot
abline(lm(mpg ~ wt, mtcars),
       col = 'salmon',
       lwd = 2) # line width

10.2.2 Multiple Scatter Plots

For a more complex example, let’s make multiple scatter plots via a for loop.

# Set up a 2x2 canvas
par(mfrow = c(2,2))

# Set parameters
unique_gears <- sort(unique(mtcars$gear))

mycolors <- c('cyan4', 'salmon','forestgreen', 'purple')

# Begin plot loop
for (i in seq_along(unique_gears)) {

  # Subset by number of gears
  ss <- subset(mtcars, gear == unique_gears[i])

  # Plot a scatter points
  with(ss,
       plot(mpg ~ wt,
            col = mycolors[i],
            ylab = 'MPG',
            xlab = 'Weight',
            main = paste0('MPG vs. Weight (No. of Gears = ',
                          unique_gears[i],
                          ')')))

  # Generate a trendline for each subset.
  abline(lm(mpg ~ wt, ss))

}

Notice how “purple” isn’t used in graphs, as there are only three sub-graphs to plot

10.2.3 Text Plot

To make a text plot, we just turn off the points in the plot() function via type = 'n' and then use the text() function to label them on the graph.

# Set up basic plot.
with(mtcars, plot(wt ~ mpg, pch = 1, type = 'n',
                  xlab = 'MPG',
                  ylab = 'Weight',
                  main = 'Weight vs. MPG'))

# Plot the labels on the graph.
with(mtcars, text(mpg, # x coordinate for words
                  wt,  # y coordinate for words
                  row.names(mtcars), # Words to use.
                  pos = 3,
                  cex = 0.0,
                  col = 'cyan4'))

# Add some mean lines for flair.
abline(h = mean(mtcars$wt), v = mean(mtcars$mpg),
       lty = 2)

10.3 Line Plots

Making a line plot is similar to making a scatter plot except that we set type = 'l' as an additional input.

# Suppose we had this dataset:
set.seed(1) # Remember our random numbers.
df <- data.frame(y = rnorm(10),
                 x = 2000:2009)

# Plot this dataset
with(df, plot(y ~ x,
              type = 'l',
              col = 'salmon',
              ylab = 'Some Random Numbers',
              xlab = 'Year'))

10.4 Box Plots

Constructing a box plot with the boxplot() function is similar to making a scatter plot with plot(): we pass a formula of vectors into it.

with(mtcars,
     boxplot(mpg ~ gear,
             ylab = 'MPG',
             xlab = 'Number of Gears',
             main = 'Box Plot of MPG vs. Number of Gears',
             col  = 'grey'))

10.5 Bar Plots

For a bar plot, we pass a vector (usually one of counts) or aggregation to barplot().

10.5.1 Frequency Chart

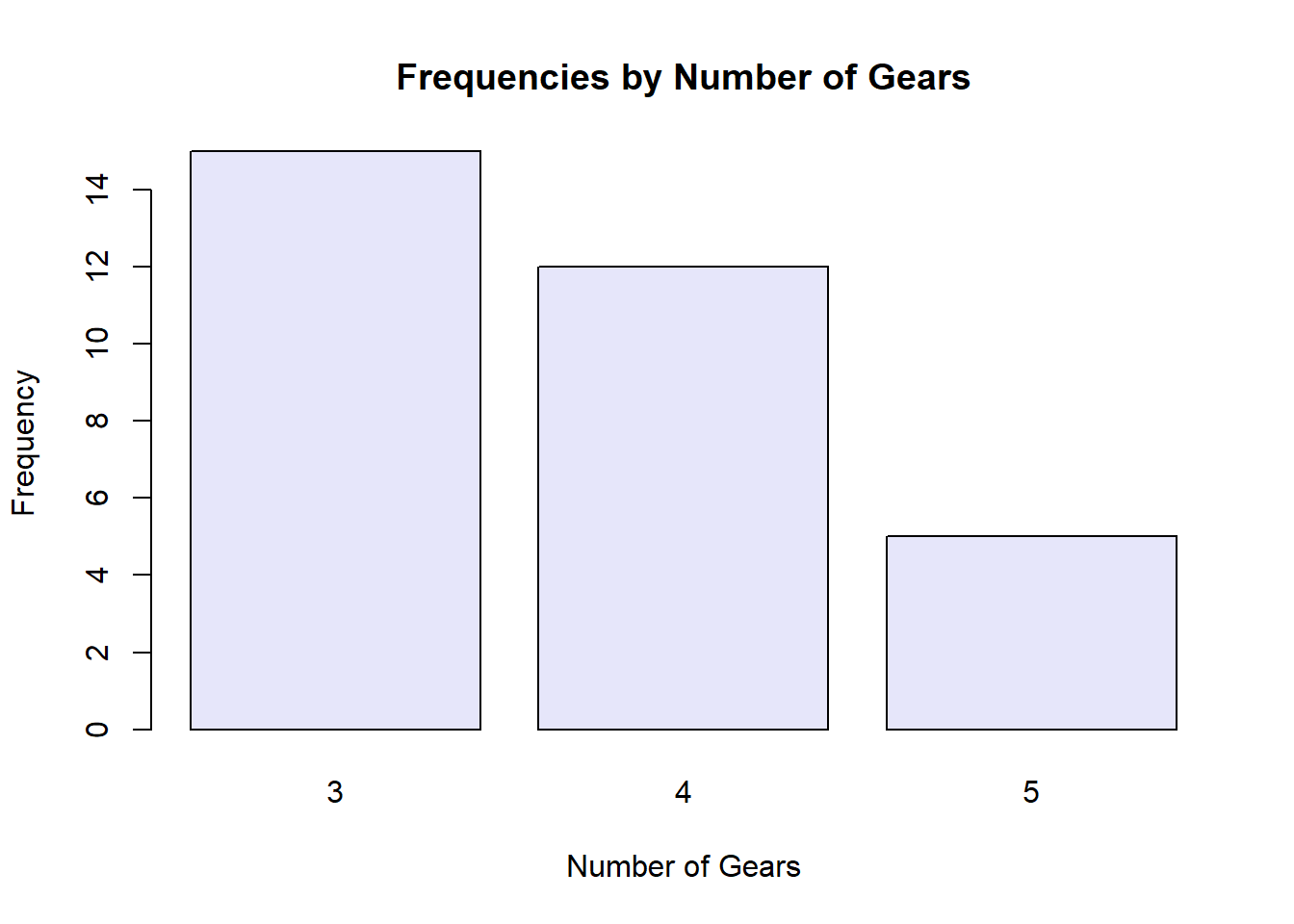

For a frequency chart, we have to calculate a table of frequencies with the table() function before passing it to barplot().

my_table <- table(mtcars$gear)

barplot(my_table,
        ylab = 'Frequency',
        xlab = 'Number of Gears',
        col  = 'lavender',
        main = 'Frequencies by Number of Gears')

10.5.2 Grouped Mean Comparisons

For grouped mean comparisons, we have to aggregate data with aggregate() (see the Functionals chapter for more details) before passing it to barplot().

my_agg <- aggregate(mpg ~ gear, mtcars, mean)

with(my_agg,
     barplot(mpg ~ gear,
             beside = TRUE, # Set to FALSE to stack bars.
             ylab = 'Mean MPG',
             xlab = 'Number of Gears',
             main = 'Mean MPG by Number of Gears',
             col  = 'lavender'))

10.6 Summary

Table 10.1: Summary of Graphing Functions

Function	Description	Example
hist(x)	Histogram	hist(mtcars$mpg)
plot(density(x))	Density plot	plot(density(rnorm(100)))
plot(y ~ x)	Scatter plot	with(mtcars, plot(mpg ~ wt))
plot(y ~ x, type = ‘l’)	Line plot	with(Orange, plot(circumference ~ age, type = ‘l’))
boxplot(y ~ x)	Box plot	with(mtcars, boxplot(mpg ~ wt))
barplot(x)	Bar plot	barplot(table(mtcars$gear))
